RPSD
J-matica

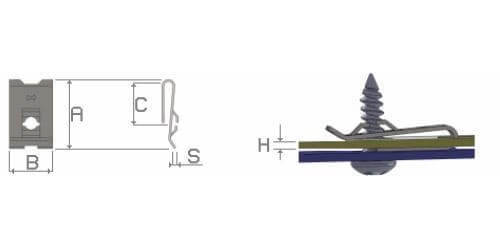

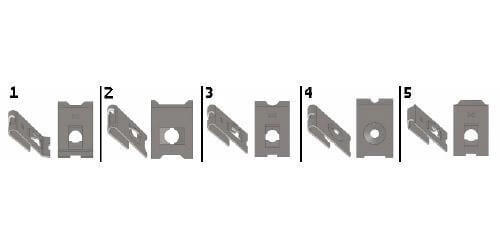

| Kód | Skrutka | A | B | C | S | H | Forma |
|---|---|---|---|---|---|---|---|
| 912406P1409012◊ | 6P (3,5mm) | 14.5 | 9 | 7.4 | 0.5 | 1,2 - 1,6 | 1 |
| 912406P1611006◊ | 6P (3,5mm) | 16.2 | 11 | 7 | 0.6 | 0,6 - 1,5 | 3 |
| 912406P1611014◊ | 6P (3,5mm) | 16.2 | 11 | 8 | 0.6 | 1,3 - 2,0 | 3 |
| 912406P1708008◊ | 6P (3,5mm) | 17 | 8 | 8.9 | 0.6 | 0,8 - 1,5 | 4 |
| 912408P1611006◊ | 8P (4,2mm) | 16.5 | 11 | 8.4 | 0.6 | 0,6 - 1,5 | 3 |
| 912408P1611014◊ | 8P (4,2mm) | 16.5 | 11 | 8.4 | 0.6 | 1,4 - 2,0 | 3 |
| 912408P2012010◊ | 8P (4,2mm) | 20 | 12 | 8.8 | 0.7 | 1,0 - 2,0 | 3 |
| 912410P1516007◊ | 10P (4,8mm) | 15.5 | 16 | 8.2 | 0.8 | 0,7 - 1,2 | 2 |
| 912410P2012009◊ | 10P (4,8mm) | 20 | 12 | 8.8 | 0.7 | 0,9 - 1,1 | 3 |
| 912410P2012010◊ | 10P (4,8mm) | 20 | 12 | 8.8 | 0.7 | 1,0 - 2,0 | 3 |
| 912410P2415012◊ | 10P (4,8mm) | 24.5 | 15 | 11.7 | 0.8 | 1,2 - 1,6 | 4 |
| 912412P2616014◊ | 12P (5,5mm) | 26 | 16 | 14.7 | 0.8 | 1,4 - 2,2 | 5 |
| 912414P2616014◊ | 14P (6,3mm) | 26 | 16 | 14.7 | 0.8 | 1,4 - 2,2 | 5 |
| Za ◊ v kóde dosaďte požadovanú povrchovú úpravu. | Popis |
|---|---|
| Podložka bez povrchovej úpravy | |
| B | Podložka biely pozink |
