Al/St RAL 8017
Hliníkový trhací nit s plochou hlavou a oceľovým tŕňom, RAL 8017

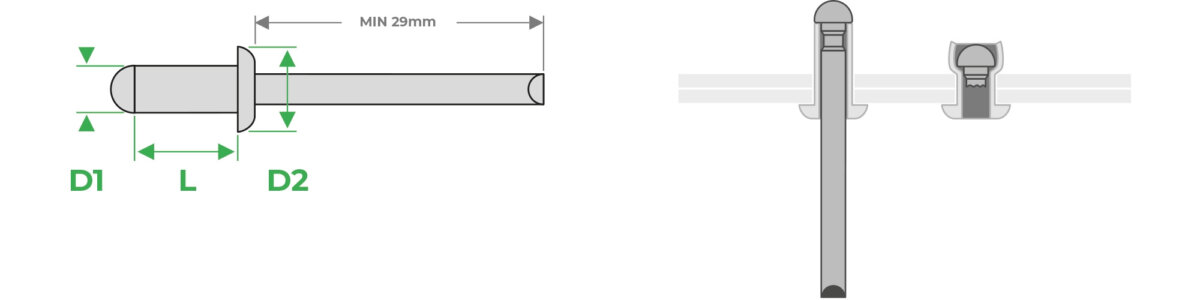

| D1 [mm] | L [mm] | D2 [mm] | Rozsah [mm] | Ťah [N] | Strih [N] | Otvor [mm] | Kód |
|---|---|---|---|---|---|---|---|
| 3,0 | 08 | 6,5 | 3,0 - 5,0 | 950 | 600 | 3,1 - 3,2 | RAL1010003008/8017 |
| 10 | 5,0 - 7,0 | RAL1010003010/8017 | |||||
| 12 | 7,0 - 9,0 | RAL1010003012/8017 | |||||
| 3,2 | 07 | 6,5 | 2,0 - 4,0 | 1 000 | 750 | 3,3 - 3,4 | RAL1010003207/8017 |
| 09 | 4,0 - 6,0 | RAL1010003209/8017 | |||||
| 10 | 5,0 - 7,0 | RAL1010003210/8017 | |||||
| 12 | 7,0 - 9,0 | RAL1010003212/8017 | |||||
| 3,4 | 07 | 7,0 | 2,0 - 4,0 | 1 250 | 900 | 3,5 - 3,6 | RAL1010003407/8017 |
| 09 | 4,0 - 6,0 | RAL1010003409/8017 | |||||
| 4,0 | 07 | 8,0 | 2,0 - 3,5 | 1 750 | 1 200 | 4,1 - 4,2 | RAL1010004007/8017 |
| 08 | 3,0 - 4,5 | RAL1010004008/8017 | |||||
| 09 | 4,0 - 5,5 | RAL1010004009/8017 | |||||
| 10 | 5 - 6,5 | RAL1010004010/8017 | |||||
| 12 | 7,0 - 8,5 | RAL1010004012/8017 | |||||
| 16 | 10,0 - 12,5 | RAL1010004016/8017 | |||||
| 4,8 | 08 | 9,5 | 2,5 - 4,0 | 2 600 | 1 850 | 4,9 - 5,0 | RAL1010004808/8017 |
| 10 | 4,5 - 6,0 | RAL1010004810/8017 | |||||
| 12 | 6,5 - 8,0 | RAL1010004812/8017 |
